#1217982 by unknown[373193] at 2009-12-20 10:14:06 (3 years ago) - [Quote] - [Report]

Case: Gigabyte 3D aurora
PSU: Corsair 750W
Mainboard: asus i7 p6td deluxe motherboard
CPU: Intel i7 920 @2.66
CPU Cooler: NOCTUA NH-U12P SE2 CPU COOLER "great cooler"
Memory: Corsair ddr3 6Gig
Graphic Card: 280GTX
Sound Card: Creative Soundmax HD Audio
Sound System: Logitech 5.1
HDD (boot): Western Digital 300GB SATA BOOT and SOFTWARE HDD
HDD (data): Western Digital 600GB Games HDD
HDD (data): Western Digital Caviar® GreenPower 1.5TB MOVIE HDD
DVD-Combo: LG -/+ 16x Dual Layer Black
Monitor: Acer 24inch 2ms
Keyboard: Logitech G15
Mouse: Logitech G5
Capture Card:COMPRO DVB-T750F 2xDV-TV PCI

ACCESSORIES
Also in my 5.25 bay i got a LCD info screen shows cpu temp, hdd,video card, fun speeds, volt lvls
and in another bay i got speed controller

#1222104 by Kakkaman Donor

(Power User) at 2010-01-01 16:55:59 (3 years ago) - [Quote] - [Report]

Time for a RIG UPDATE!

Case: Antec 902 (Christmas gift... Thanks bro!)
PSU: ACE 550W
Motherboard: ASUS P5Q-E
CPU: Intel E7300 @ 3.4 gHz, 1.32 vCore
Cooler: Zalman CNPS9700 LED
RAM: 2x2GB Patriot LowLatency (4-4-4-12, 2.1V)
GFX: ATi Radeon HD4850 @ Stock Clocks
Sound: Creative X-Fi Xtremegamer w/ Logitech X-210 2.1 Speakers
HDDs: 3 x Samsung F1s for a total of 2 TB
Monitor: Acer AL1917 19" 4:3 goodness
Keyboard: Logitech G11 (blue > orange IMO)
Mouse: Logitech MX1100 (well it hasn't arrived yet)

This image has been resized, click here to view the full-sized image.

#1223032 by unknown[58490] at 2010-01-04 02:43:39 (3 years ago) - [Quote] - [Report]

UPDATE 3-01-10:Made a couple upgrades to my system so I figured I'd update the thread because I'm really bored, updates in bold.

Processor: Core2duo E8400 at 3.6GHz

Memory: 8GB G-Skill DDR2 1066 @ 5-5-5-12

Hard Drives:
Primary
640GB Western Digital Black
Storage
1x1.5TB Seagate Barracuda
2x500GB Seagate Barracuda

Video Card: eVGA GTX260 core 216

Motherboard: ASUS Maximus 2 Formula

Sound Card: Onboard (CreativeHD something or other)

Power Supply: PC Power & Cooling 750w Silencer (Blue)

Speakers: 3 Emotiva ERM 6.2s, a pair of ERD-1s and 2 ASW-8s hooked up to an Onkyo TX-SR706

Operating System: Windows 7 Ultimate x64

Fans: Normal Case fans and an Arctic Cooling Freezer 7 Pro

Case: Antec P182 Gunmetal Gray

Keyboard: Wireless logitech.

Mouse: Logitech G7

Monitor: 24inch Westinghouse for work and a 42inch Toshiba Regza for everything else.

Misc: Cheap all in one card reader and an LG DVD-R.

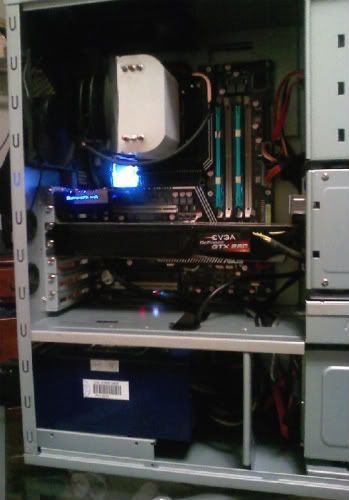

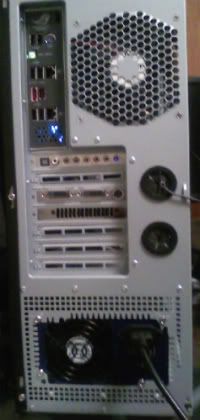

Here are a couple pics unfortunately they are taken with a phone camera in less than optimal conditions so they are quite shit.

#1223263 by unknown[24504] at 2010-01-04 20:23:04 (3 years ago) - [Quote] - [Report]

Umm, turn your cpu cooler 180 degrees.

#1223267 by unknown[239832] at 2010-01-04 20:29:15 (3 years ago) - [Quote] - [Report]

porrnisse wrote:

Umm, turn your cpu cooler 180 degrees.

yeah, unless the fan on it pushes air out youre making a massive mistake

#1223309 by Merc Donor

(Power User) at 2010-01-04 22:48:45 (3 years ago) - [Quote] - [Report]

grifter66 wrote:

kwl, nice system, how did u get the cpu cooler to face towards the exhaust fan? on mine i can hav it facing down (blowing air onto the gpu or facing towards the top of the case which will blow air into the psu, i wanted it like urs is now.) for AMD cpu btw

#1223311 by rooieboel (Power User) at 2010-01-04 22:58:18 (3 years ago) - [Quote] - [Report]

Processor: Core i5 750 @ 2.67GHz

Memory: GeiL 4 GB DDR3-1600 Kit Black Dragon

Hard Drives:
2x WesternDigital Velociraptor 150 GB in Raid-0
temp seagate 500gb

Video Card: Nvidia 9600GT

Motherboard: GigaByte P55M-UD2 P55 F RG SM

Sound Card: Onboard

Power Supply: OCZ ModXStream Pro 500W ATX2

Speakers: Logitech X530

Operating System: Windows 7 Ultimate x64

Fans: Standard thermaltake casefans

Case: Thermaltake Lanbox lite

Keyboard: Logitech G15

Mouse: Logitech G9

Monitor: Acer X243hq

Last edited by rooieboel at 2010-01-07 13:08:33

#1223339 by unknown[58490] at 2010-01-05 01:08:14 (3 years ago) - [Quote] - [Report]

porrnisse wrote:

Umm, turn your cpu cooler 180 degrees.

Why would I want to blow hot air into my machine, kind of beats the purpose of an exhaust fan doesn't it?

#1223345 by unknown[172158] at 2010-01-05 01:26:17 (3 years ago) - [Quote] - [Report]

Most common setups have the fan the other side pushing air through the cooler. As your heatsink is close to the exhaust I guess you lose a bit of efficiency having it that side. It's hardly a big deal when it comes down to actual numbers though

#1223370 by newb001 Donor

(Power User) at 2010-01-05 04:13:56 (3 years ago) - [Quote] - [Report]

Yea if its on the other side you would have air flowing through the cooler so it should have better cooling than 2 exhaust fans next to each other.

#1223389 by unknown[24504] at 2010-01-05 08:09:34 (3 years ago) - [Quote] - [Report]

grifter66 wrote:

porrnisse wrote:

Umm, turn your cpu cooler 180 degrees.

Why would I want to blow hot air into my machine, kind of beats the purpose of an exhaust fan doesn't it?

Fans are often designed to push air, as sucking air is alot harder. Your cpu fan is pushing air towards the front of the case while the fan behind it is trying to suck it out of the case, causing less effiency and maybe even
cavitation noise.

Think would you?

#1223391 by unknown[58490] at 2010-01-05 08:29:52 (3 years ago) - [Quote] - [Report]

porrnisse wrote:

grifter66 wrote:

porrnisse wrote:

Umm, turn your cpu cooler 180 degrees.

Why would I want to blow hot air into my machine, kind of beats the purpose of an exhaust fan doesn't it?

You can tell which direction my fan is blowing air just from looking at the plastic on the top of it? Impressive.

I have two fans sucking air in from the front and blowing across everything while the cpu fan blows the hot air out, either way air is moving across the fins of the heatsink and being sucked out the back of the case. Considering my OC'ed CPU sits at a cool 25 degrees I'm not too worried about if the fan sucks from the front or blows from the back.

Fan directions are adjustable... Think would you?.

#1223392 by unknown[24504] at 2010-01-05 08:35:24 (3 years ago) - [Quote] - [Report]

grifter66 wrote:

Fan directions are adjustable... Think would you?.

Only if you can flip the fan 180 degrees, and by looking at your arctic cooling model, you cant.

I'm just saying, sure you can modify the power connector but that will eventually break the fan.

#1223402 by newb001 Donor

(Power User) at 2010-01-05 09:28:58 (3 years ago) - [Quote] - [Report]

Yea the way that fan comes is so it blows through the heatsink.
Is this like the best cooler out? cause i don't see how it can really be 25 degrees when oc'd.

#1223403 by unknown[172158] at 2010-01-05 09:42:53 (3 years ago) - [Quote] - [Report]

I doubt he's using a high voltage, 3.6 is a pretty low OC of a 8400, also as it's winter temps will naturally be lower. Regardless, I usually take peoples temps with a pinch of salt - this is the internet afterall!

Most coolers can idle at low temps, it's at load where you see which are the best/worst. On the flipside the AC7 is a pretty basic and average performing heatsink, the only thing it has going for it is it's price - and for £10(ish) more you could pick up a Xigma/Fenrir

#1226217 by Gamakichi (Power User) at 2010-01-11 21:42:23 (3 years ago) - [Quote] - [Report]

Since this topic is about posting pics of your rig I'll post mine.
It's not that fancy though.

Case: Aerocool Aeroengine II.
Motherboard: DFI LANPARTY UT X48-T2R.
Cpu: Intel Q9550
Memory: 4096Mb OCZ Reaper 1066.
Videocard: Outdated Nvidia7900GTX.
Soundcard: Auzentech x-fi prelude.
HDD: WD Raptor 36gig
HDD: Samsung spinpoint f1 1TB.
Monitor: Samsung 19" thinhgy.

From the outside:

This image has been resized, click here to view the full-sized image.

From the inside, Thermalright Cooled:

This image has been resized, click here to view the full-sized image.

This image has been resized, click here to view the full-sized image.

The hdd's reside in silentmaxx casings:

This image has been resized, click here to view the full-sized image.

The annoying blinking light on the auzentech card:

This image has been resized, click here to view the full-sized image.

And a total shot of my corner:

This image has been resized, click here to view the full-sized image.

SkribEdit: Use imgw tags please

Last edited by Skriblez at 2010-01-11 22:47:11

#1226226 by Matt865 Donor

(VIP) at 2010-01-11 22:17:29 (3 years ago) - [Quote] - [Report]

Picture edited a bit to blur out some photos and stuff sitting around.

Case: CoolerMaster HAF 932
Motherboard: BioStar T-power x58
CPU: Intel i7 Quadcore @ 3GHz, Thermalright Ultra-120 eXtreme cooler.
Power: Tagan 700W Modular PSU
Memory: 6x2GB Corsair 1333MHz
Videocard: NVIDA GTX295
HDD 1: Hitach Cheapass 1TB
HDD 2: Samsung Spinpoint 1TB
Monitor: Samsung SyncMaster 19"
OS: Win 7 Pro (legit)
Speakers: Logitech Z-4 (got rid of 5.1 system to save space)
Mouse/Keyboard: Logitech Cordless Desktop Wave

It ain't as dusty as it looks. :giggle:

More pics when I can be bothered to open it.

Last edited by Matt865 at 2010-01-11 22:25:34

#1226723 by eduardor2k Donor

(User) at 2010-01-12 23:50:12 (3 years ago) - [Quote] - [Report]

Case: Dell case
Motherboard: Dell motherboard
CPU: Intel P4 3.0Ghz HT
Power: Dell PSU
Memory: 2.2GB DDR1
Videocard: Ati 9200 > Ati 5870
HDD 1: Seagate 320GB
Monitor: Samsung 22"
OS: Linux Mint 7 (legal)
Speakers: Sony Headphones
Mouse/Keyboard: Logitech 5$ keyboard + logitech 5$ mouse + 1.5m of cable xD

Best computer in the world

Last edited by eduardor2k at 2010-01-12 23:50:41

#1228001 by unknown[24504] at 2010-01-15 20:15:37 (3 years ago) - [Quote] - [Report]

I had one of those, the fan makes you wanna kill yourself.

#1229642 by eduardor2k Donor

(User) at 2010-01-19 18:49:35 (3 years ago) - [Quote] - [Report]

porrnisse wrote:

I had one of those, the fan makes you wanna kill yourself.

This one is very quiet, you can hear it only if the computer gets very hot, 720p, games etc..

#1229667 by Kakkaman Donor

(Power User) at 2010-01-19 19:32:14 (3 years ago) - [Quote] - [Report]

Our school just bought 5 of those things...

THE FANS RUN AT 100% IF YOU OPEN FIREFOX FFS!

Dear god i hate those things.

#1229670 by rooieboel (Power User) at 2010-01-19 19:34:50 (3 years ago) - [Quote] - [Report]

Kakkaman wrote:

Our school just bought 5 of those things...

THE FANS RUN AT 100% IF YOU OPEN FIREFOX FFS!

Dear god i hate those things.

lol, just this morning a saw a batch of new pcs come in my school. a pallet full of core i7's about 20 of them

#1229734 by remyxx87 Donor

(Power User) at 2010-01-19 22:02:25 (3 years ago) - [Quote] - [Report]

rooieboel wrote:

Kakkaman wrote:

Our school just bought 5 of those things...

THE FANS RUN AT 100% IF YOU OPEN FIREFOX FFS!

Dear god i hate those things.

lol, just this morning a saw a batch of new pcs come in my school. a pallet full of core i7's about 20 of them

Break in snatch some of them
go change school.

#1229765 by rooieboel (Power User) at 2010-01-19 22:36:22 (3 years ago) - [Quote] - [Report]

remyxx87 wrote:

rooieboel wrote:

Kakkaman wrote:

Our school just bought 5 of those things...

THE FANS RUN AT 100% IF YOU OPEN FIREFOX FFS!

Dear god i hate those things.

lol, just this morning a saw a batch of new pcs come in my school. a pallet full of core i7's about 20 of them

Break in snatch some of them
go change school.

i was thinking of snatching one, but that would mean i had to unwrap the whole palet, and that was just too much work

#1232972 by Rassy (Power User) at 2010-01-27 21:41:36 (3 years ago) - [Quote] - [Report]

porrnisse wrote:

grifter66 wrote:

porrnisse wrote:

Umm, turn your cpu cooler 180 degrees.

Why would I want to blow hot air into my machine, kind of beats the purpose of an exhaust fan doesn't it?

I have an air tunnel on my cpu too and it blows hot air out, the difference is mine goes out to the side instead of the back, and cpu air tunnels isnt really something new, but may not be that common.
